Tools for engineering work

Find the software for your task.

Start with what you need to do. Each product page explains the task, who can use it and what to check before using the results.

Built for the work you do

Where does it help you?

Start with your discipline. Find a practical calculation, a visual model or a clearer way to explain your design.

What are you working on?

Explore the tools

See the available products below. Full modeling tools require Premium; calculator access varies by tool.

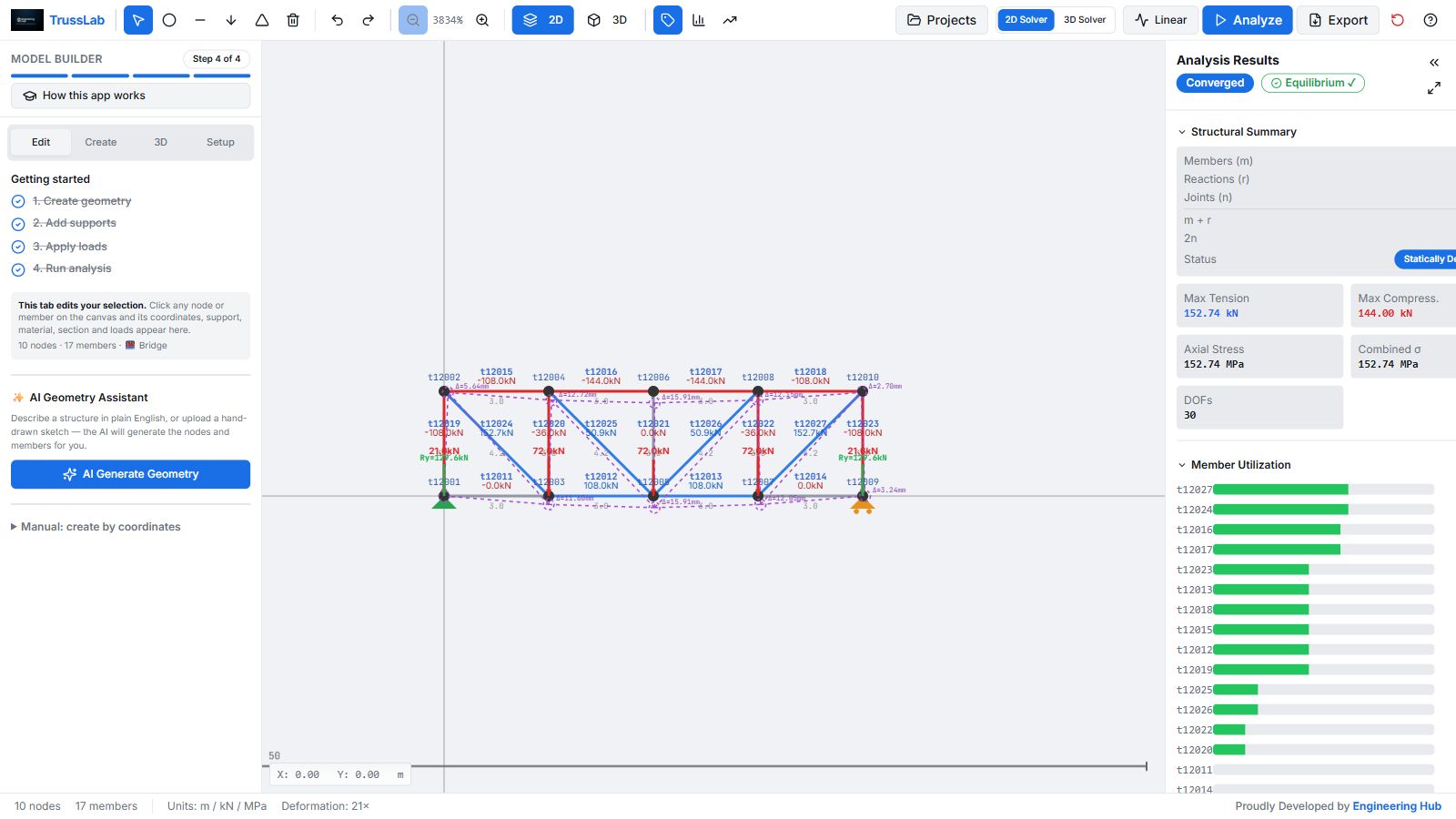

Full Truss Lab workspace showing the built-in highway bridge, member forces, deformation and analysis results

Structural analysis

Truss Lab

See how your structure carries its loads.

Build a truss or frame in 2D or 3D. Add supports and loads, then see the forces in each member and how the structure moves.

See what Truss Lab does →

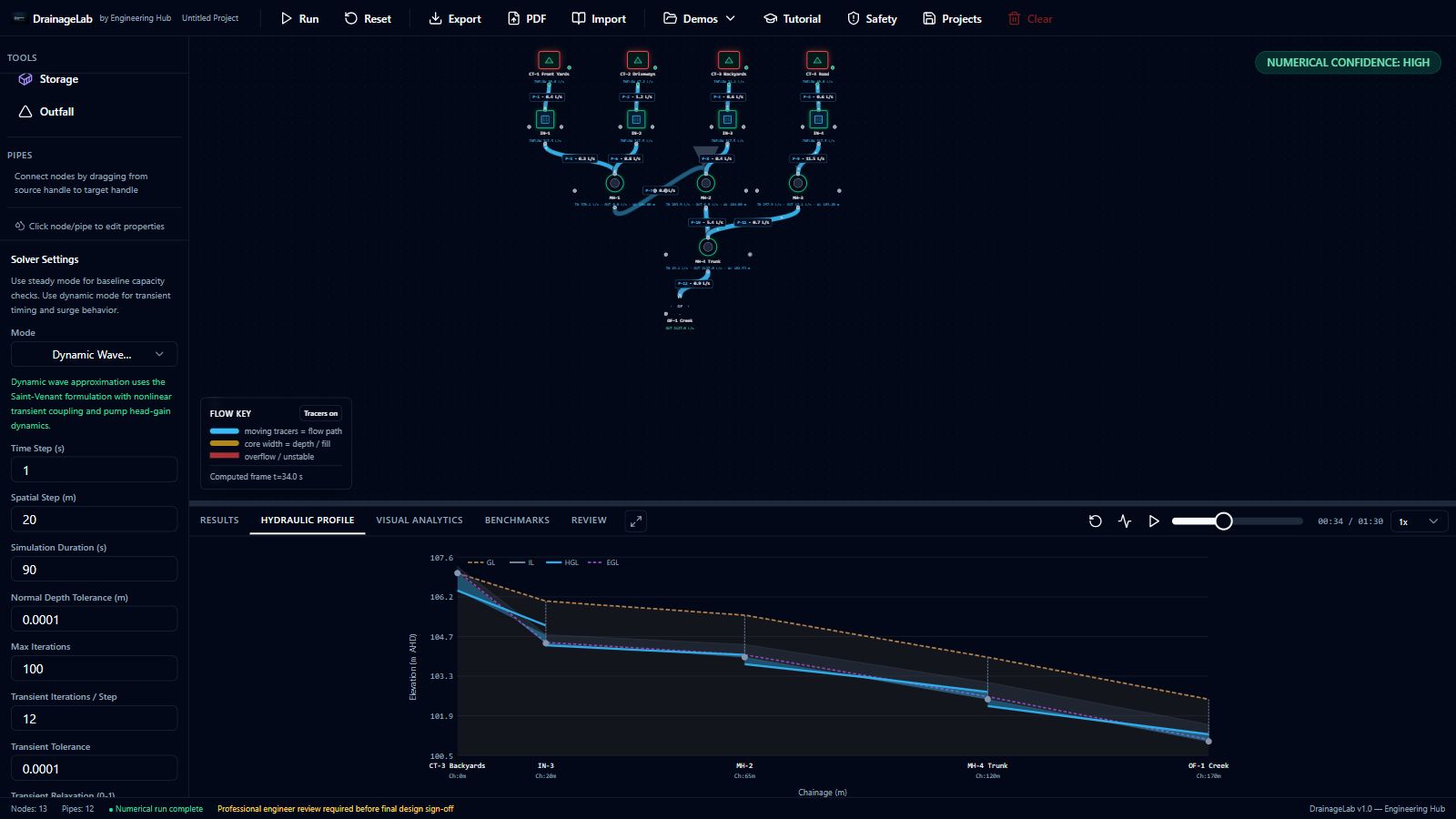

Full Drainage Lab workspace showing the built-in network and computed hydraulic profile

Drainage & hydraulics

Drainage Lab

See where the water goes.

Draw a drainage network and explore how rainfall moves through pipes, channels and storage. See water levels, flow and areas that need a closer check.

See what Drainage Lab does →

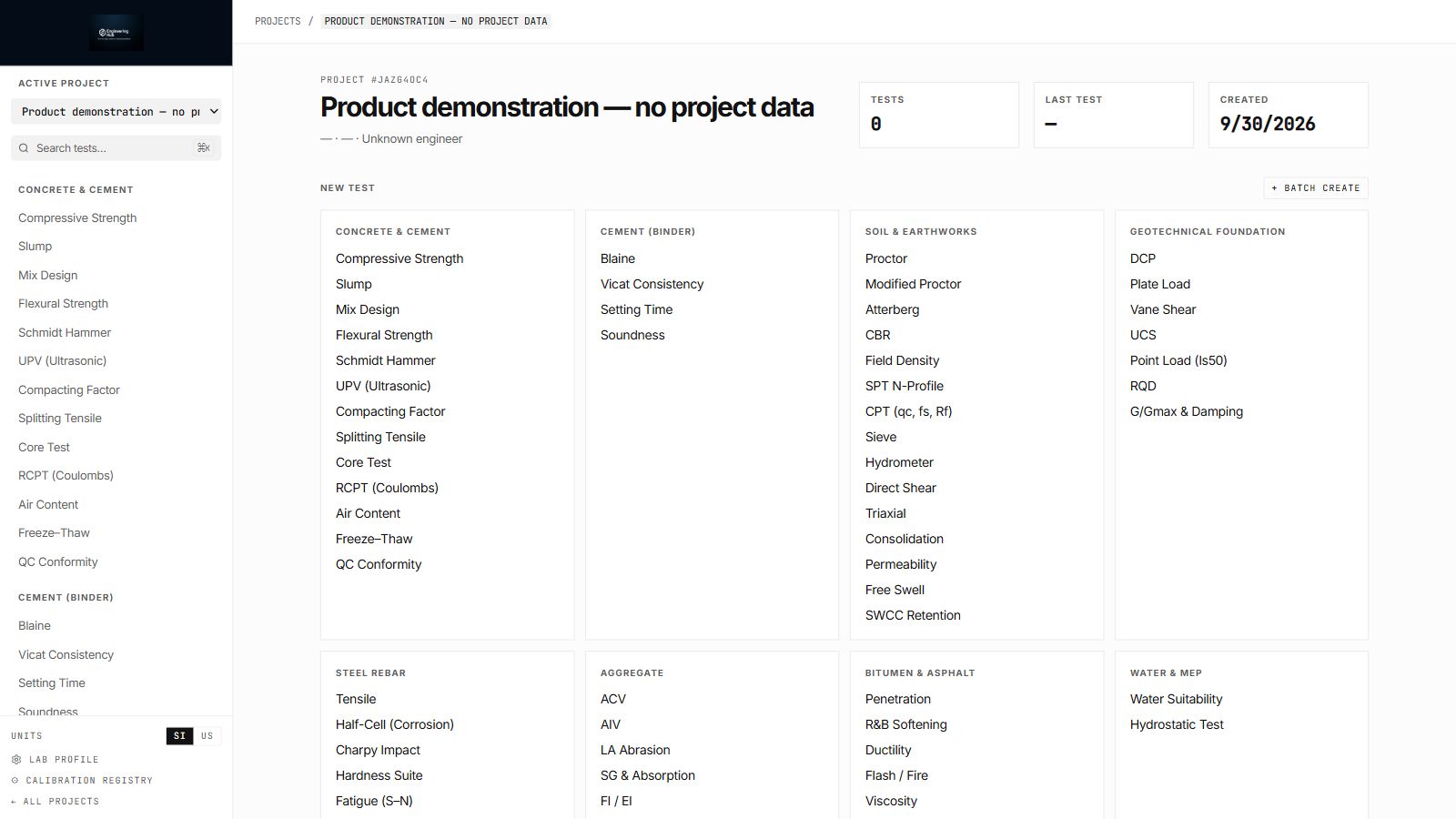

Full Test Lab workspace showing a labeled demonstration project and engineering test library

Materials & laboratory workflows

Test Lab

Turn test readings into organized results.

Keep materials tests together by project. Enter measured readings, review calculations and maintain laboratory and calibration records.

See what Test Lab does →
Enginuity project coordination workspace showing retained submission versions, original design files, review decisions and agreed deliverables in an example project

Engineering project workspace

Enginuity

Keep the project, its evidence and its decisions together.

Keep the brief, design submissions, review actions and project documents together. Complete design work in your specialist tools, then bring the files into Enginuity to coordinate review, construction and handover.

See what Enginuity does →

One project. Several jobs.

Start where you are. These tools can help at different stages; review and enter the relevant project inputs in each.

Model a response. Draw a system.

Control simulation, engineering diagrams and calculations for your next system.

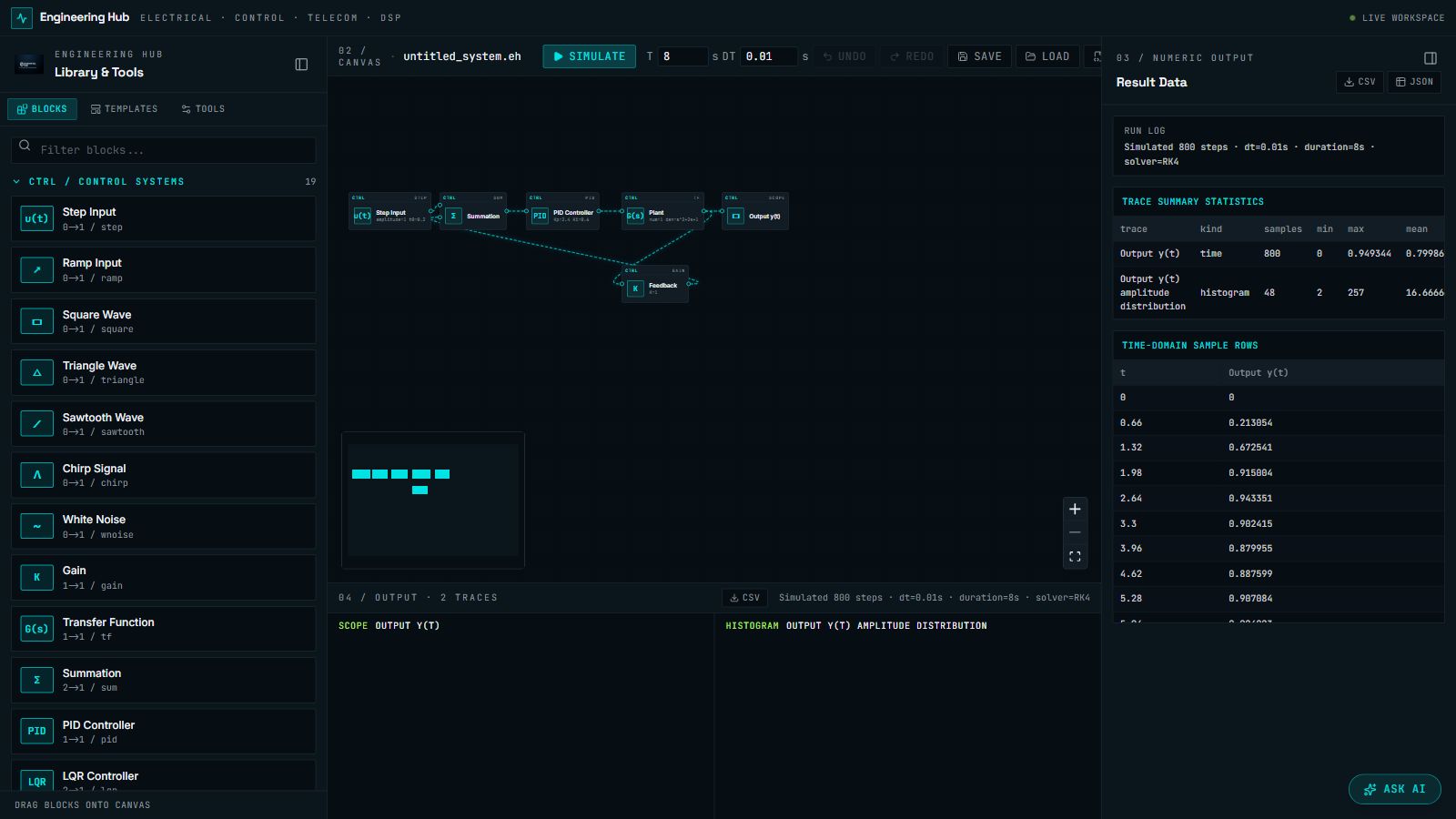

Full Signal Flow workspace showing a feedback control loop, computed traces and numeric output

Control, electrical & DSP

Signal Flow

See how a system responds.

Connect control or signal blocks, run a simulation and inspect the results. Explore feedback loops, electrical circuits and signal processing.

See what Signal Flow does →

See what the tools actually do.

Start with something familiar. Watch an example, see who it’s for, then choose your next step.

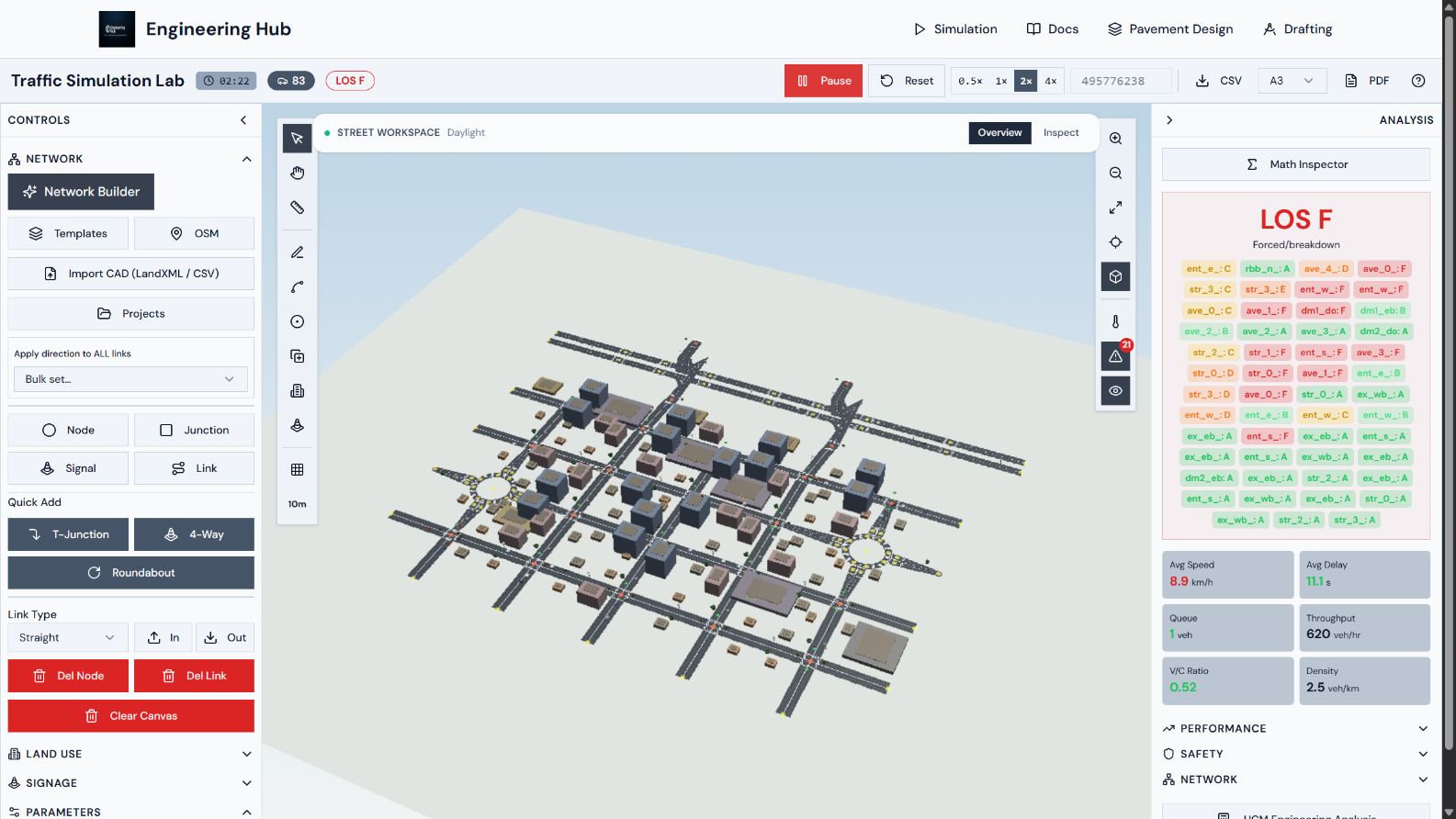

Traffic Flow Lab · 16 seconds

See a city network beside live traffic analysis

A current full-workspace recording of Traffic Flow Lab. Watch the built-in city network in the daylight 3D presentation beside its network controls and live operational metrics. The example shows congestion and review warnings; project use requires calibrated inputs and engineering review.

Read the walkthrough
  1. See the current daylight street workspace with the complete city network, controls and operational metrics visible together.
  2. Inspect the running demonstration's congestion, speed, delay and throughput. The example and its warnings require calibration and review before project use.

Drainage Lab · 24 seconds

Follow water through a drainage network

A guided screen tour of the built-in residential network. The app flags a difference between its two calculation modes. Further checks are needed before these example results can be used in a design.

Read the walkthrough
  1. Connect catchments, inlets, manholes and an outfall.
  2. Run the dynamic approximation and inspect a computed time step.
  3. Read the water-level profile along the network.
  4. Review assumptions, warnings and the project review controls.

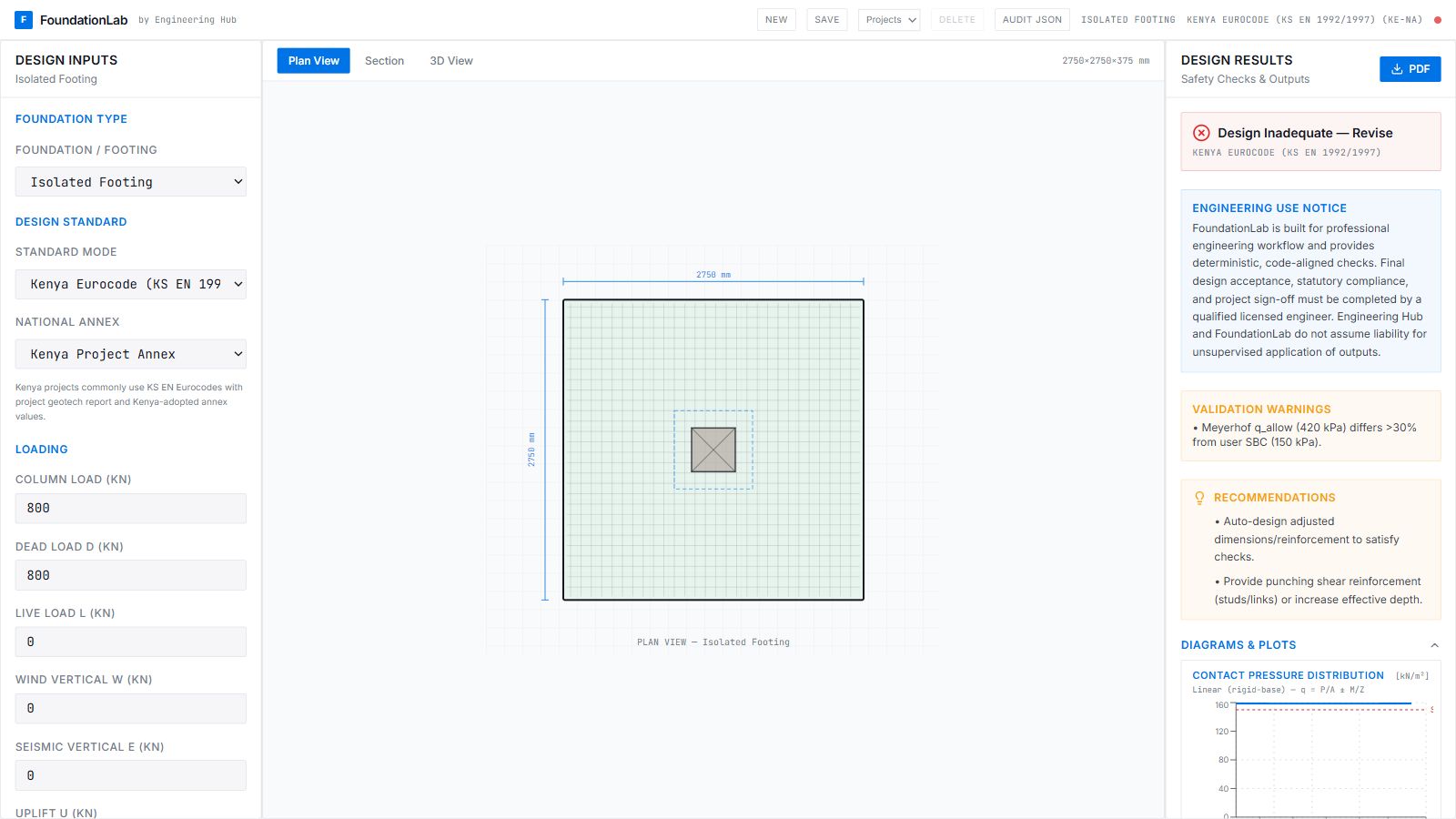

Foundation Design Lab · 24 seconds

See the foundation and the checks behind it

A guided screen tour of the application's default footing example: plan, section, reinforcement in 3D and a marginal punching check. The application marks this example Design Inadequate — Revise; the warnings remain visible.

Read the walkthrough
  1. Start with the default example's foundation, declared loads and soil inputs.
  2. Inspect the section and reinforcement layout.
  3. See the footing and reinforcement in the 3D view.
  4. Review the marginal punching check. Resolve the design and validation warnings before using these results.

Truss Lab · 24 seconds

A truss, from model to results

A guided screen tour of a built-in bridge example: 2D setup, linear analysis, a 3D view and the results panel. Both 2D and 3D solver controls are available in the app; this tour runs the 2D solver.

Read the walkthrough
  1. Start with a 2D model and its supports and loads.
  2. Run a linear 2D analysis; inspect forces and movement.
  3. View the same model in 3D. This is a 3D view, not a separate 3D solve.
  4. Open the wider results panel to review member utilization.

Coming soon

Products in development. These are prelaunch previews, with release details to follow.

Enginuity Draft

Coming soon · Visual engineering design

Enginuity Draft

Design, analyze and prepare your handoff.

Coming soon: a workspace for drawing engineering models and connecting them to analysis and project documents.

See what Enginuity Draft does →
SpecTrace

Coming soon · Engineering review & evidence

SpecTrace

Keep project checks and evidence together.

Coming soon: tools for reviewing engineering models and keeping a record of project checks and supporting evidence.

See what SpecTrace does →

From your inputs to a result you can review

Start with your project information. See the calculation, check the result and prepare your handoff.

  1. 01

    Set up your task

    Enter the dimensions, materials, loads or measured readings your task needs.

  2. 02

    Run the calculation

    Choose the method and calculate using the values you entered.

  3. 03

    Check the result

    See the model, diagrams and numbers. Review assumptions and warnings.

  4. 04

    Share your work

    Use the reports and file exports available in the tool you chose.

For engineering firms & corporate teams

Put engineering software to work in your organization.

Tell us what your team needs to calculate, model or review. We’ll help you choose the tools, check the fit and discuss access for your team.
